Your Engineering Solution with JUN E&C
DeSOx System
Equipment that removes acidic harmful substances (SOx, HCl, HF, etc.) from
combustion gases generated when burning coal, oil, waste, exhaust gas, and biomass.
combustion gases generated when burning coal, oil, waste, exhaust gas, and biomass.

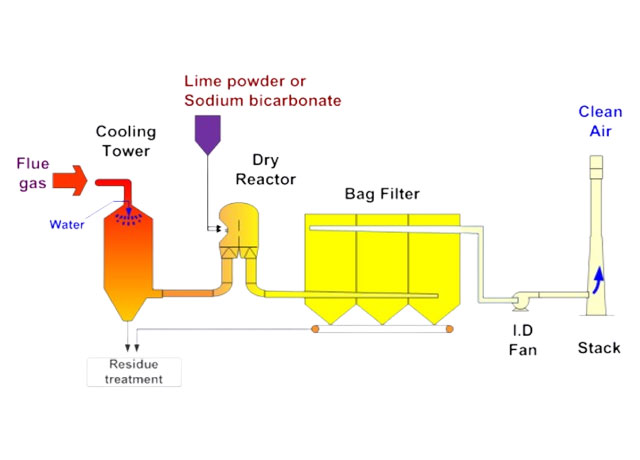

Dry Process
Powdered absorbent is injected into combustion gas containing acidic harmful substances to absorb and remove them.

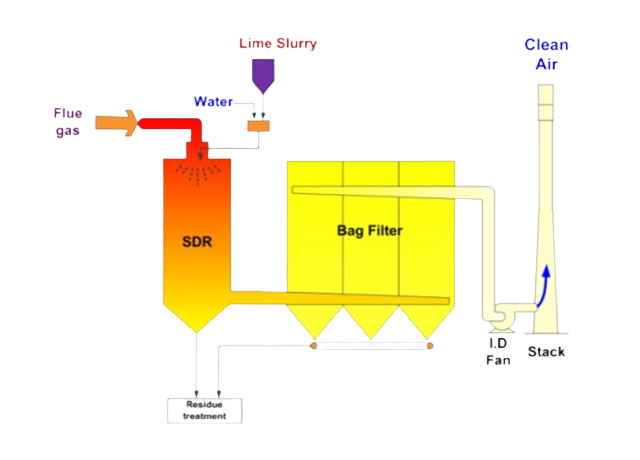

Semi-Dry Process
A process that injects slurry-state absorbent into combustion gas containing acidic harmful substances to absorb and remove them. The absorbent is sprayed into the reaction tower through slurry spray nozzles,cooling the combustion gas while removing acidic harmful substances through chemical reactions.

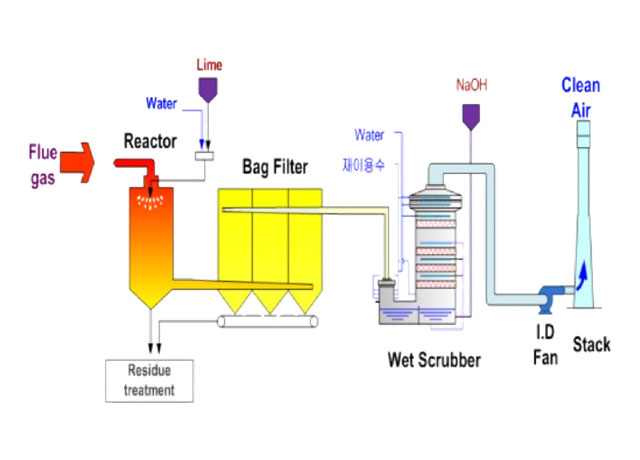

Wet Process
Combustion gas containing acidic harmful substances becomes saturated in the Quencher (cooling section) and then flows into the Absorber (absorption section) where acidic harmful substances are removed by the absorbent. At the final stage, a Demister is installed to prevent liquid droplets from being discharged.
